ECHO Player connection

功放一體機音響設備的鏈接方法 中文視頻介紹

麥克風連接方法中文介紹

Connetion method instruction in English

ECHO Player has been built with mixing amplifier, so it could connect 8~16 ohms passive loudspeaker directly .This is defaul connection method. The connection is simple and the effect is better.Loudspeaker cable is included in the package.

2.ECHO Player also could connect with external mixer or amplifier. But it need to use R/L connection port. Digital connection can not output microphone sound.(Unless External amplifier and speaker has analog signal  switch to digital signal function )

For connecting other amplifier, please refer below video to operate it.For this connection method, karaoke machine amplifier is otiose, External amplifiers play a major role.Could adjust sound effect mainly via External amplifier .

RCA Cable is not included in the package for this all in one machine.

Whichever audio connection method you need, please make sure use the sound equipment that is built with Analog audio connection port. Digital connection port could not output Microphone sound,Becaues people voice out of microphone is analog audio signal(Unless the external sound equipment has function that could switch analog audio signal to digital signal.)

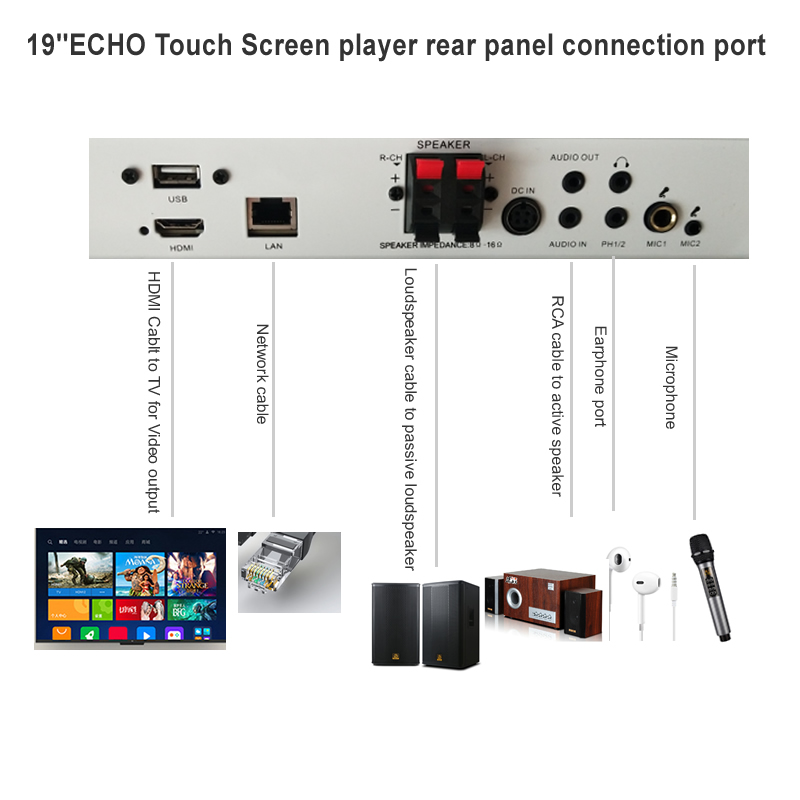

Aslo attachment connection picture for your eays reference
